Automatic Rebar Stirrup Machine

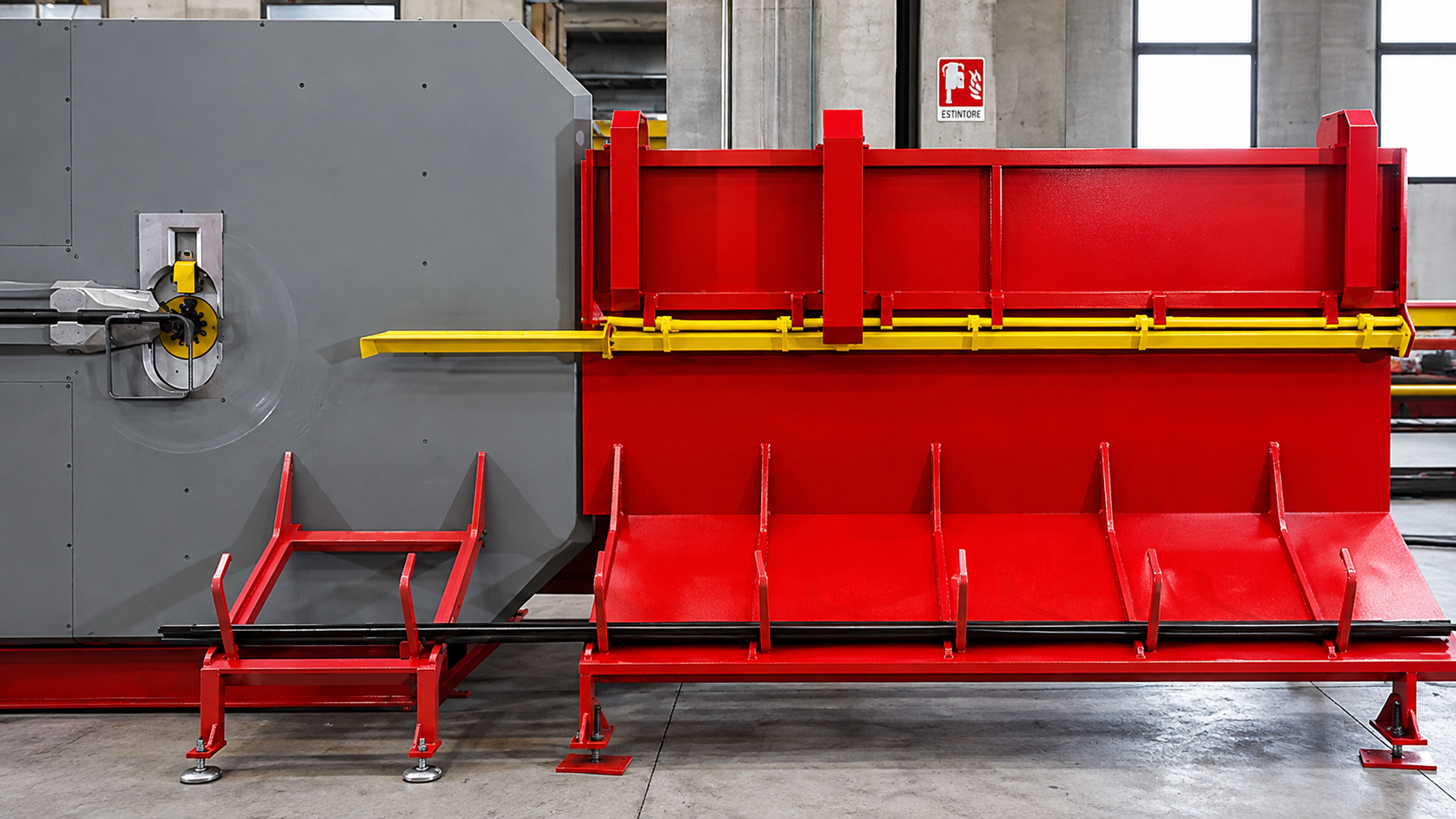

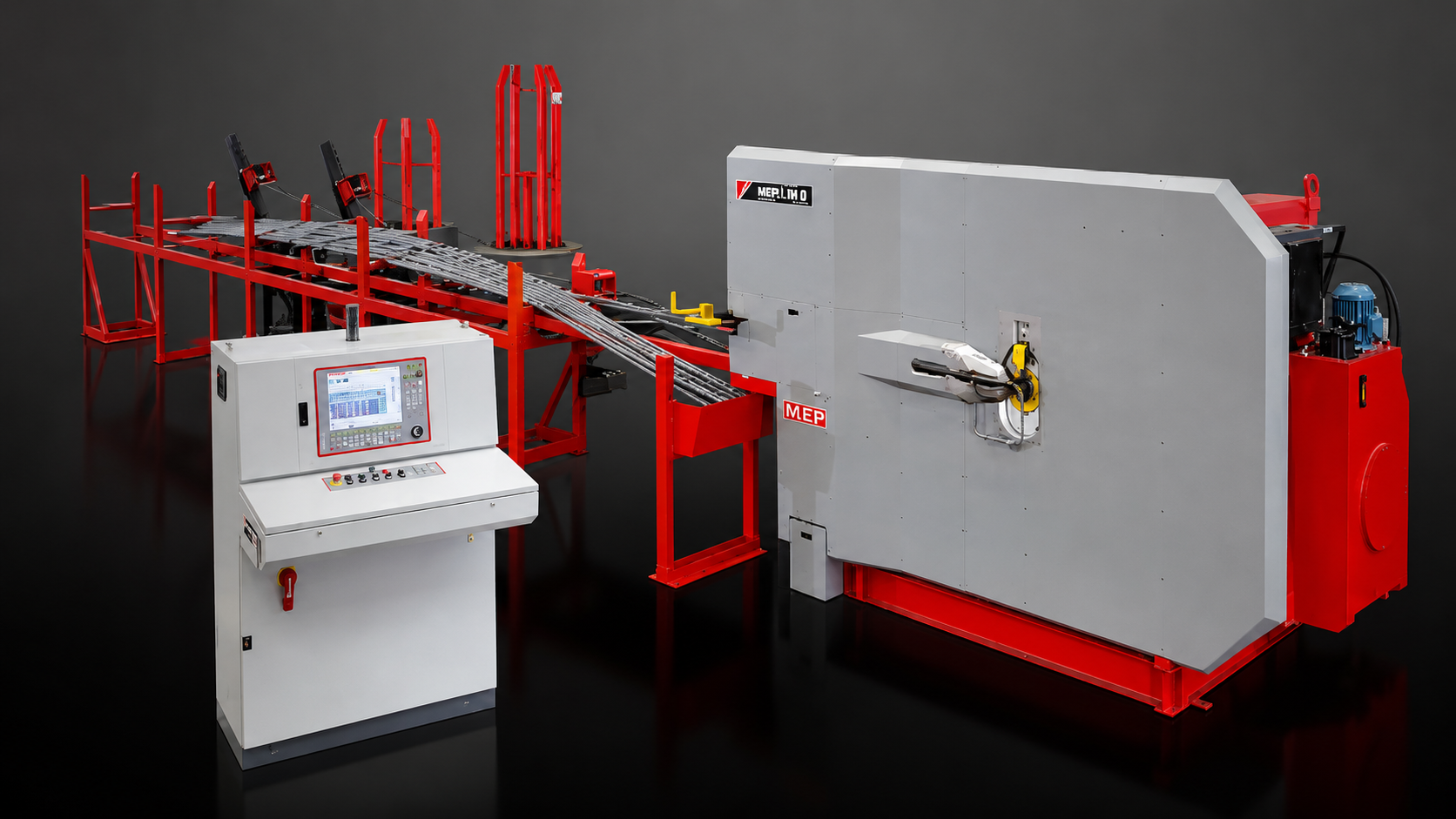

Automatic Stirrup Bending Machine
The Format Line is an advanced automatic stirrup bending solution designed to process both coil and stock rebar, providing maximum flexibility for different production requirements.
The Format 16 HS & 20 HS combine high productivity, precision, and ease of operation, ensuring consistent quality of finished stirrups in a fully automated production process.
Key Features
-
Automatic stirrup bending from coil and stock rebar
-
High-speed, high-performance production
-
Maximum production flexibility
-
Precise and consistent bending quality
-
Easy operation
-
Designed for demanding, high-volume production
| FORMAT 16 HS | FORMAY 20 HS | |
| ORIGIN | 🇮🇹 | 🇮🇹 |
| SINGLE STRAND PROCESSING WIRE DIAMETER | from Ø 6 to Ø 16 mm | from Ø 10 to Ø 20 mm |
| DOUBLE STRAND PROCESSING WIRE DIAMETER | from Ø 6 to Ø 12 mm | from Ø 10 to Ø 16 mm |
| SQUARE STIRRUPS DIMENSIONS | ||
| MINIMUM SIZE WITH Ø 6 mm WIRE (optional bending pin) | 50 x 50 mm | 80 mm x 80 mm |
| MAXIMUM SIZE IF CLOCKWISE | 1 500 mm x 1 500 mm | 1 600 mm x 1 600 mm |
| MAXIMUM SIZE IF COUNTERCLOCKWISE (with eventual optional cover extension) | 2 000 mm x 2 000 mm | 2 200 mm x 2 200 mm |
| LENGTH OF STRAIGHTENED AND CUT-TO-LENGTH BAR | ||
| MINIMUM SIZE | 5 mm | 5 mm |
| MAXIMUM SIZE (if equipped with optional supporting guide) | 12 000 mm | 12 000 mm |
| CENTER FORMING TOOLS DIAMETER | ||
| MINIMUM SIZE | 24 mm | 30 mm |
| MAXIMUM SIZE | 80 mm | 160 mm |
| MAXIMUM DISTANCE BETWEEN CENTRAL BENDING PIN AND THE GROUND | ||
| STANDARD SIZE | 2 000 mm | 2 300 mm |
| OPTIONAL UPON REQUEST | > 2 000 mm | > 2 300 mm |
| STANDARD NOMINAL POWER (other sizes upon request) | 25 kW | 49 kW |
