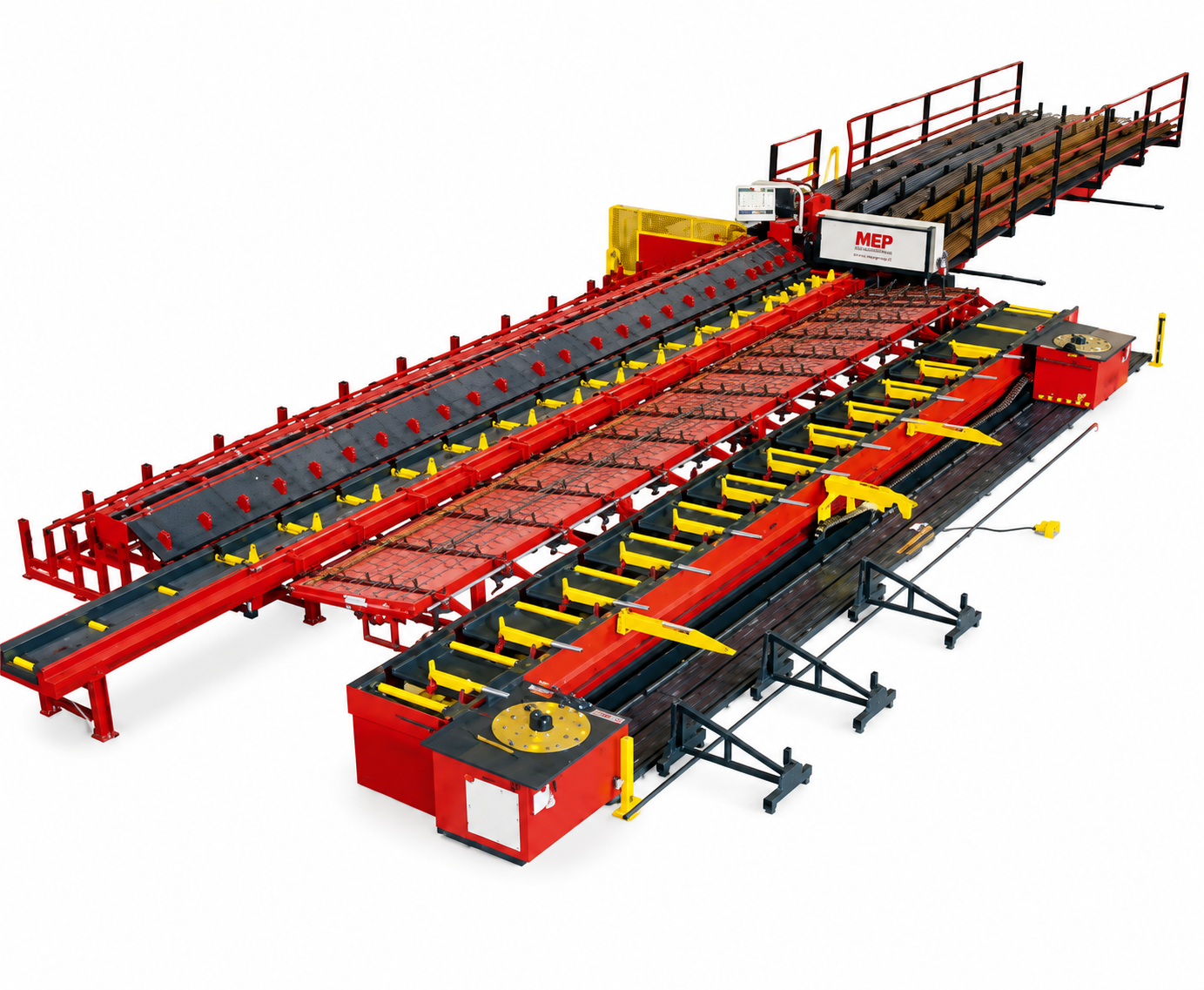

Automatic Bar Shear Line Machine
The LTM Series is designed for precise, efficient, and reliable automatic rebar cutting, combining robust construction with flexible configurations for different production requirements.
LTM 60 features a powerful “Alligator” hydraulic shear in a compact, modular design, providing excellent versatility with minimal space requirements.

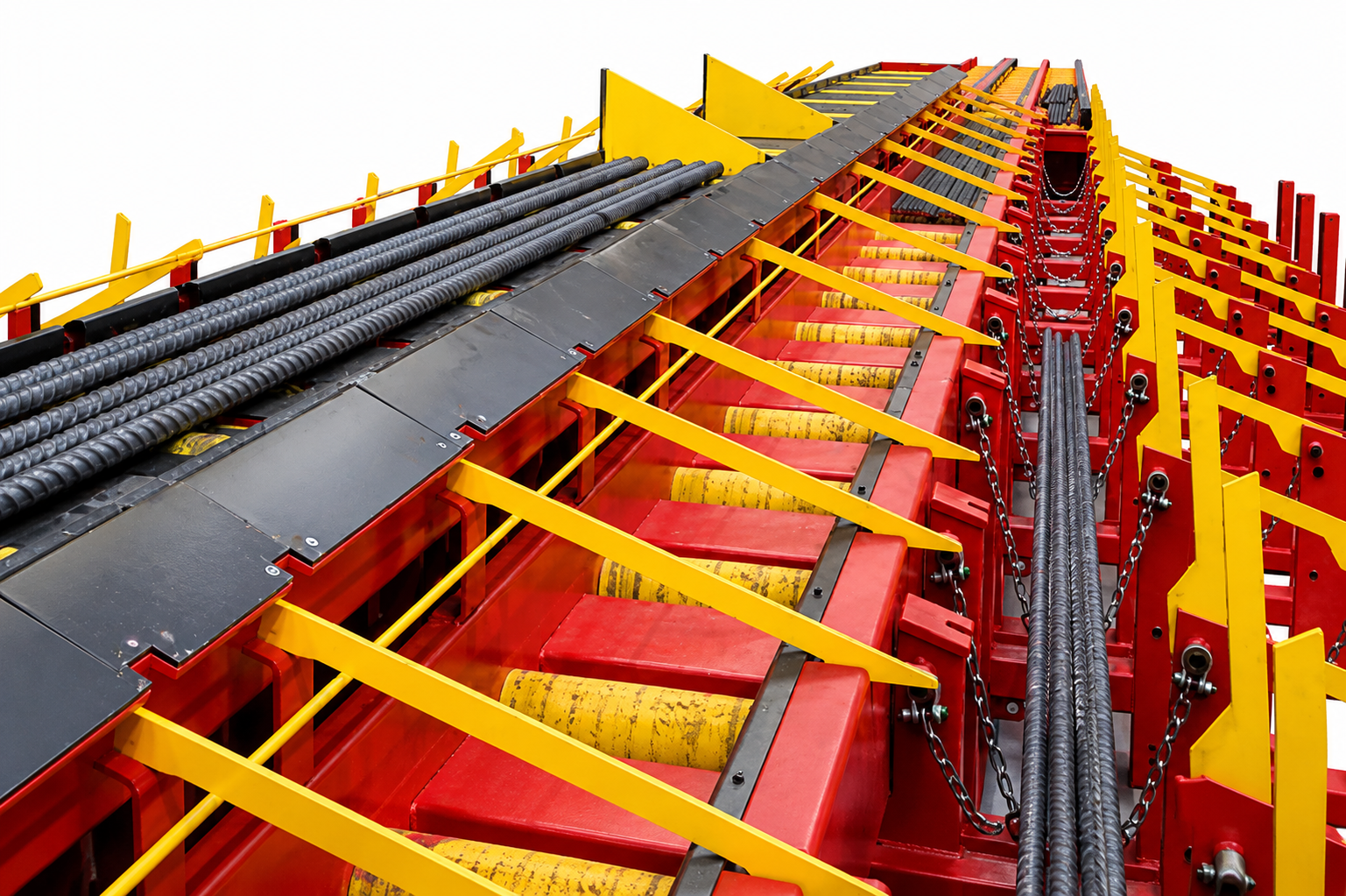

LTM 300 & LTM 500 feature a movable guillotine shear that travels up to 500 mm for precise programmed cutting. Motorized retractable rollers at the shear entry and exit automatically support and release the bars throughout the cutting process.
Key Features
- Automatic and precise rebar cutting
- Robust hydraulic cutting systems
- Compact and modular configurations
- Programmable cutting lengths
- Automatic motorized roller system
- Designed for reliable, high-volume production
| REBAR Ø mm | 60 | 50 | 45 | 40 | 35 | 32 | 28 | 25 | 20 | 16 | 12 |
| LTM 60 | 1 | 2 | 3 | 4 | 4 | 5 | 6 | 9 | 14 | 20 | |
| LTM 300 - 300 S | 1 | 3 | 3 | 8 | 8 | 9 | 10 | 13 | 16 | 20 | |
| LTM 500 | 2 | 3 | 5 | 8 | 12 | 13 | 16 | 17 | 22 | 28 | 37 |
| The maximum number of bars depends on the width of the road roller | |||||||||||
| LTM 60 | LTM 300 | LTM 500 | |
| MAXIMUM CONVEYOR WIDTH (other sizes on request) | 280 mm | 310 mm | 510 mm |
| SPEED | 0.5 ÷ 1 m/s | 0.5 ÷ 1 m/s | 0.5 ÷ 1 m/s |
| MAXIMUM TIME FOR A CUT | 3/s | 4 ÷ 5/s | 5 ÷ 7/s |
| ACTUAL BLADE WIDTH | 300 mm | 380 mm | 530 mm |
| NOMINAL POWER (other sizes upon request) | 6 kW (5 HP) | 22 kW (16 HP) | 50 kW (37 HP) |
