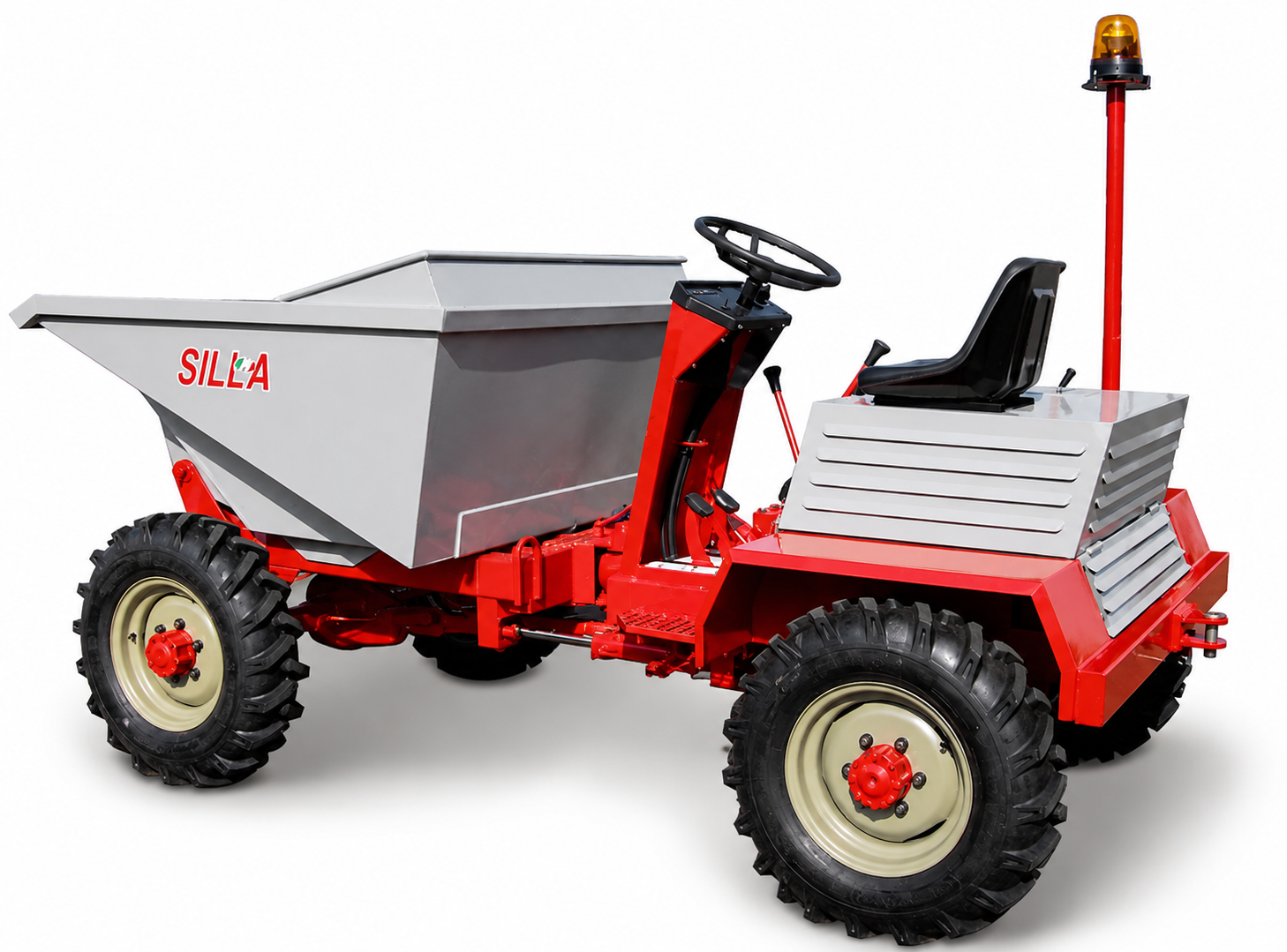

HYDRAULIC FRONT-TIPPING DUMPER
Designed for efficient concrete and material handling, this robust 4-wheel-drive dumper combines excellent maneuverability with a hydraulic front-tipping system for fast and efficient unloading.
The dumper range offers capacities from 600 to 3,000 liters, with payloads of up to 7 tons, making it suitable for demanding construction and industrial applications.
| Dumper 1 200 NT/ SN/ 3L | |
| ORIGIN | 🇮🇹 |
| STRUCK CAPACITY | 1 200 L |
| HEAPED CAPACITY | 1 500 L |
| MAXIMUM PAYLOAD | 3 000 kg |
| UNLOADED WEIGHT | 1 700 kg |
| FORWARD/ REVERSE GEARS | 4/4 |
| MAXIMUM SPEED | 25 km/h |
| BRAKES | 4-wheel hydraulic foot brakes |
| DRIVE | 4-wheel drive |
| TYRES | 10.0/75 - 15.3 |
| Dumper 1 200 NT/ SN/ 3L | |
| ENGINE TYPE | DIESEL |
| ENGINE BRAND | LOMBARDINI 9LD 625.22 |
| POWER ENGINE | 28.5/ 23 HP |
| NUMBER OF CYLINDERS | 2 |
| COOLING SYSTEM | AIR-COOLED |
| TRANSMISSION | MECHANICAL |
| TRANSMISSION TYPE | Single Dry Plate Clutch |
