HEAVY DUMPERS

DUMPERS

HEAVY DUMPERS

Designed for demanding construction and industrial applications, these dumpers combine high load capacity, maneuverability, and reliable performance for efficient transportation of concrete and materials on site.

Their compact and versatile design allows operators to work effectively in confined or challenging environments. Depending on the model, advanced steering configurations—including four-wheel, two-wheel, and crab steering—provide excellent maneuverability across the jobsite.

For enhanced operator protection and comfort, the cab features an ergonomic design, reversible driver’s seat, and ROPS/FOPS-certified protection.

Key Features

  • 4-wheel drive
  • Suitable for concrete and material handling
  • High maneuverability and versatility
  • Designed for heavy-duty applications
  • Multiple steering configurations
  • ROPS/FOPS-certified operator cab
  • Reversible driver’s seat
  • Available capacities: 4.2 m³ and 7 m³

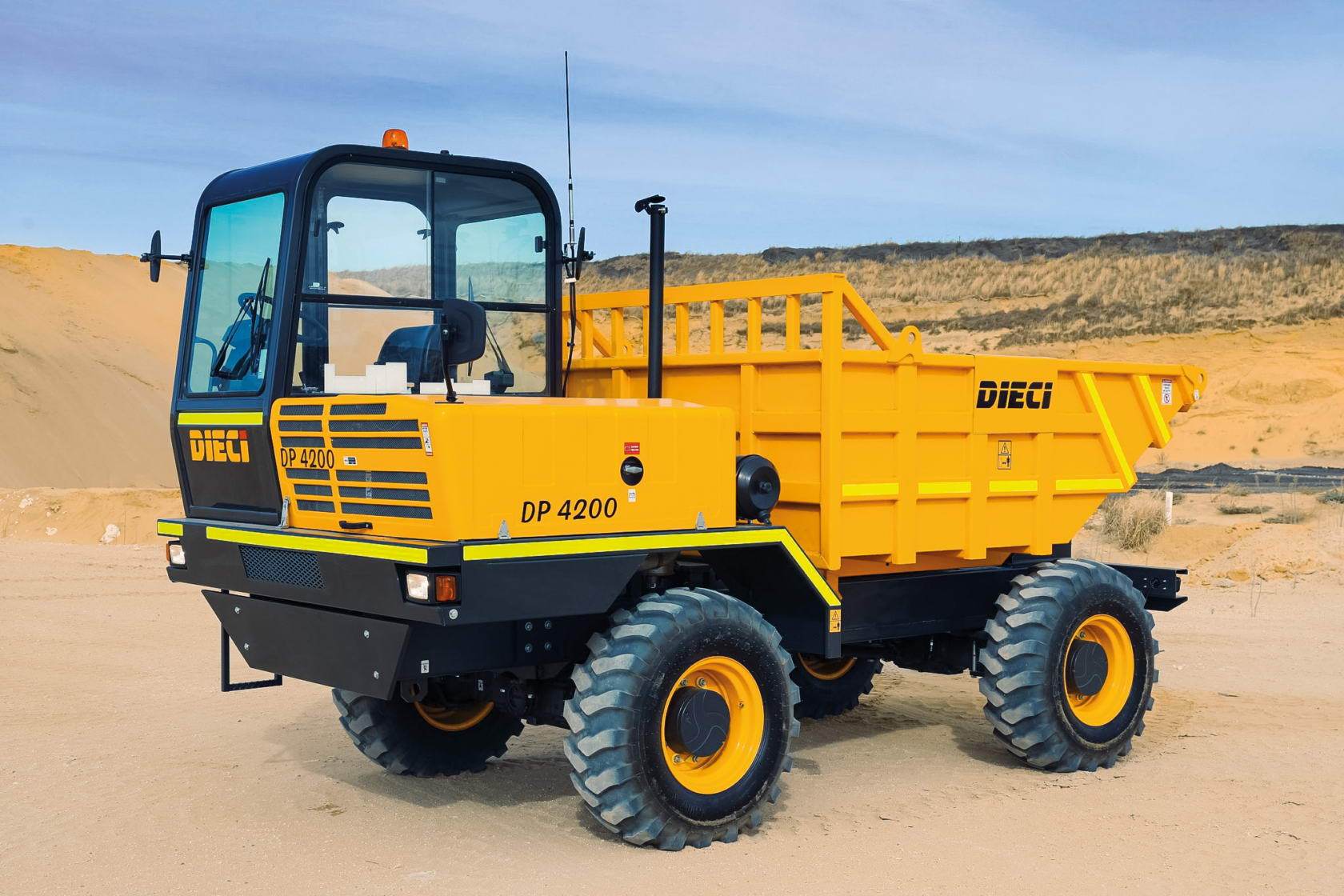

  DP 1 000 DP 4200 DP 7 000
ORIGIN      🇮🇹      🇮🇹      🇮🇹
MAXIMUM CAPACITY  2 500 kg  8 000 kg  12 000 kg
LEVEL DUMP BODY LOAD VOLUME  1.0 m³ 4.2 m³ 7,0 m³
HEAPED DUMP BODY LOAD VOLUME 1.2 m³ 5.3 m³ 7.50 m³
MAXIMUM SPEED 23 km/h  27 km/h 20 km/h
UNLADEN WEIGHT 1 200 kg  5 000 kg 6360 kg
STANDARD TIRES 7.5x16″ 405/70×20″ 405/70×20″
  DP 1 000 DP 4200 DP 7 000
BRAND LOMBARDINI  FPT  FPT
FUELING Diesel Diesel  Diesel
DISPLACEMENT 954 cm³ 4485 cm³ 4 485 cm³
NOMINAL POWER  15 kW 74 kW 93 kW
RPM PER NOMINAL POWER 3 000 rpm 2200 rpm 2 200 rpm
PEAK POWER  15 kW 74 kW 93 kW
RPM PER PEAK POWER  3 000 rpm 2200 rpm 2 200 rpm
COOLING SYSTEM Air Liquid  Liquid
EMISSION STANDARD Stage IIIA/Tier 3 Stage IIIA/Tier 3 Stage IIIA/Tier 3
TRANSMISSION TYPE  Single-plate dry clutch, 4-Gear with reversing mechanism Hydrostatic with variable displacement pump Hydrostatic with variable displacement pump
  DP 1 000 DP 4200 DP 7 000
HEIGHT FROM GROUND 270 mm 400 mm 430 mm
MAXIMUM LENGTH 3 100 mm 4 960 mm 5 820 mm
CAB HEIGHT  2 520 mm 3 010 mm 3090 mm
TIRE WIDTH 2 350 mm 2 350 mm 2 350 mm
WHEELS CURVE RADIUS 4 500 mm 5 260 mm 6 310 mm
