SELF LOADING MIXERS

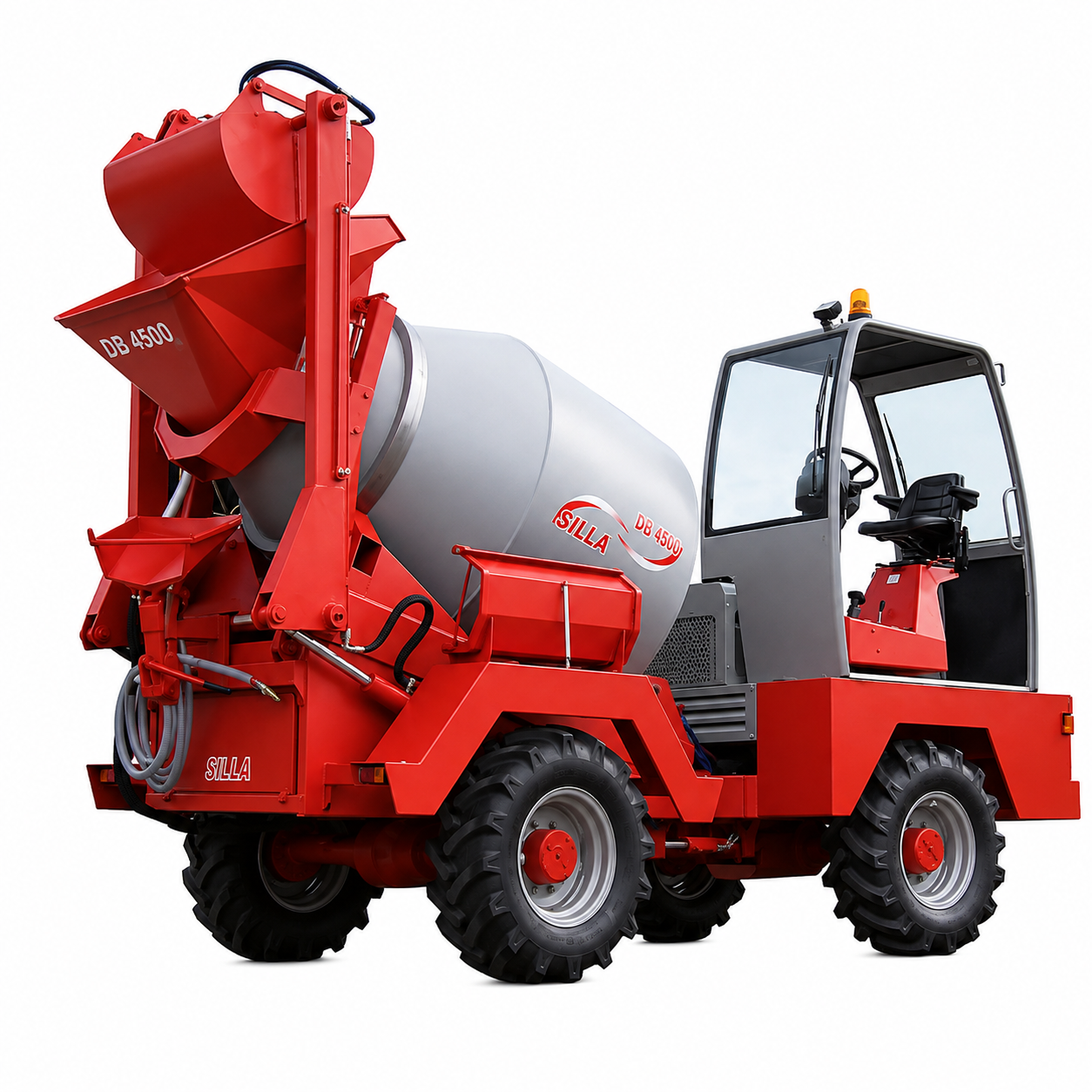

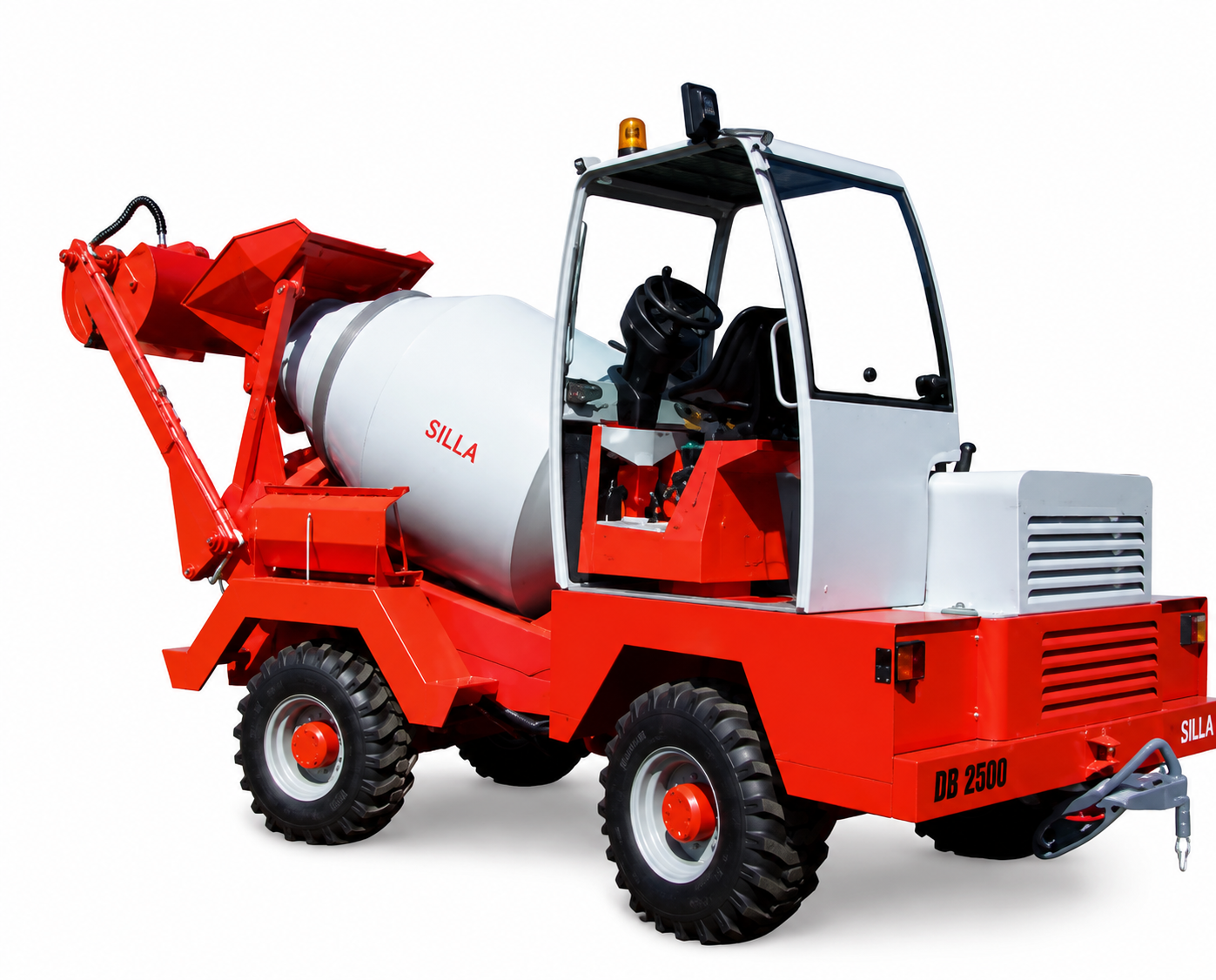

SILLA Self-Loading Concrete Mixers combine loading, mixing, transporting, and discharging concrete in one compact machine, providing an efficient solution for on-site concrete production.

Built for demanding construction environments, the range features robust articulated frames, four-wheel drive, and high-capacity mixing drums, allowing reliable operation even on difficult terrain and in areas inaccessible to conventional concrete mixer trucks.

For greater batching accuracy, the mixers can also be equipped with an optional digital aggregate weighing system and water meter.

Concrete Output Range: 1.0 – 4 m³

SPECIFICATIONS

Self-loading, mixing, transporting & discharging
Drum capacities from 1,200 to 4,500 L
Ready-mixed concrete capacity up to 3.5 m³
Four-wheel drive
Heavy-duty articulated chassis
Designed for rough and demanding terrain
Compact design for restricted-access construction sites
Optional digital aggregate weighing system
Optional water metering system

PERFORMANCE

	DB 1200	DB 2000	DB 2500	DB 3000	DB 4000	DB 4500
DRUM CAPACITY	1.200 L	2000 L	2500 L	3.000 L	4.000 L	4.500 L
READY MIXED CONCRETE	1.000 L	1.600 L	2.000 L	2.400 L	3.000 L	3.500 L
BUCKET CAPACITY	90 L	170 L	170 L	270 L	270 L	270 L
WATER TANK CAPACITY	170 L	230 L	280 Lt	650 L	650 L	650 L
MAX PAYLOAD	2.450 kg	3.500 kg	4.800 kg	5.500 kg	6.500 kg	7.700 kg
TRANSMISSION	MECHANICAL - HYDROSTATIC	MECHANICAL	MECHANICAL - HYDROSTATIC	HYDROSTATIC	HYDROSTATIC	HYDROSTATIC
MAX SPEED	22 km/h	22 km/h	22 km/h	25 km/h	25 km/h	25 km/h
MAX GRADIENT AT FULL LOAD	30%	30%	30%	30%	30%	30%
TYRES	11.5/80-15.3	10.5/80-18	12.0/75-18	12.5/80-18	12.5/80-18	405/70 R20 14 PR

ENGINE

	DB 1200	DB 2000	DB 2500	DB 3000	DB 4000	DB 4500
MAX RATING	36/51 HP	54.4 HP	54.4/63 HP	102 HP	102 HP	102 HP
NB OF CYLINDERS	3/4	3	3	4	4	4
COOLING SYSTEM	WATER	AIR	WATER/AIR	WATER	WATER	WATER
FUEL TANK CAPACITY	30 L	30 L	30 L	55 L	55 L	55 L

DIMENSIONS

	DB 1200	DB 2000	DB 2500	DB 3000	DB 4000	DB 4500
WHEEL BASE (A)	2 150 mm	2 200 mm	2 200 mm	2 700 mm	2 700 mm	2 700 mm
MINIMUM LENGTH (B)	4 230 mm	4 300 mm	4 500 mm	5 300 mm	5 300 mm	5 300 mm
MAX LENGTH (WITH GRAB DOWN) (C)	5 140 mm	5 650 mm	5 900 mm	7 150 mm	7 150 mm	7 150 mm
HOPPER HEIGHT (D)	2 065 mm	2 050 mm	2 400 mm	2 600 mm	2 600 mm	2 640 mm
CONVOYOR HEIGHT (E)	1 575 mm	1 475 mm	1 800 mm	2 000 mm	2 000 mm	2 040 mm
HEIGHT OF TAILRACE (F)	1 220 mm	1 000 mm	1 200 mm	1 500 mm	1 500 mm	1 540 mm
MAX HEIGHT (G)	2 970 mm	2 000 mm	2 760 mm	3 200 mm	3 750 mm	3 790 mm
MAX WIDTH (H)	1 550 mm	1 900 mm	2 000 mm	2 270 mm	2 270 mm	2 350 mm
GROUND CLEARNCE (I)	245 mm	260 mm	260 mm	270 mm	270 mm	340 mm
STEERING WHEEL HEIGHT (L)	2 000 mm	1 900 mm	1 900 mm	2 200 mm	2 200 mm	2 350 mm
