BLOCK MAKING MACHINE

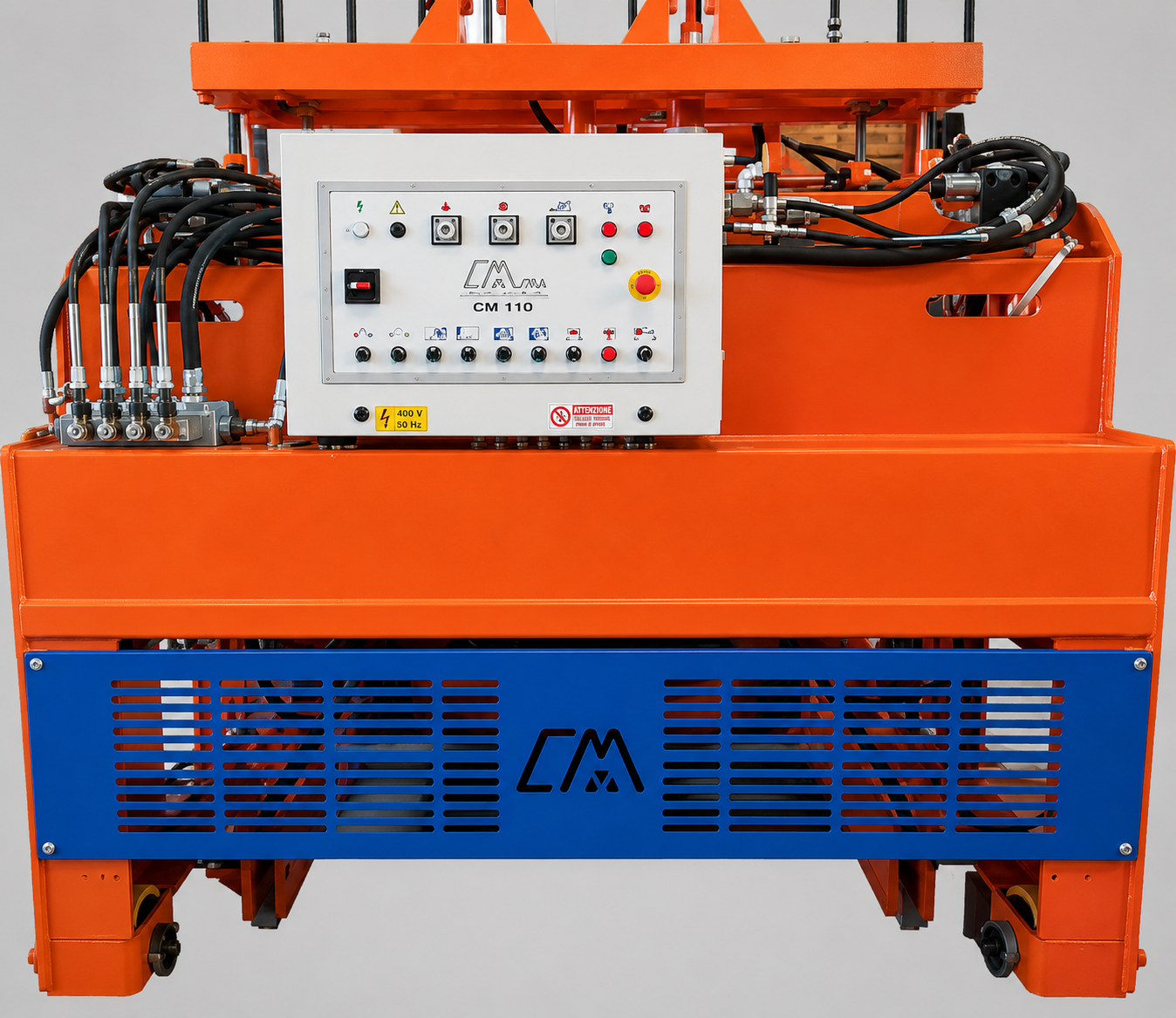

The CM 110 Mobile Block Making Machine is designed for the production of solid concrete blocks, hollow blocks, bricks, and curbstones.
Manufactured in Italy, the machine combines high production capacity with reliable hydraulic operation and can be supplied with an automatic or semi-automatic control system.
Depending on the product and mould configuration, production can reach up to approximately 34,000 units per shift.
| Model | CM 110 |
| Origin | 🇮🇹 |
| Operating System | Automatic / Semi-Automatic |
| Working Area | 1,000 × 1,000 mm |
| Typical Output | Approx. 400 blocks/hour for 200 × 200 × 400 mm blocks |
| Cycle Time | 35-40 sec |
| Hopper Capacity | 1,200 L |
| Working Pressure | 130 bar |
| Nominal Power | 16.9 kW |
| Power Supply | 400 V – 50 Hz, 3 Phase |
| Machine Weight | Approx. 5,000 kg without mould / 5,800 kg with mould |
The CM 110 is equipped with a robust hydraulic system designed for reliable and continuous production.
The system includes:
- Electric motor and hydraulic pump
- High-resistance steel hydraulic pipes
- High-resistance flexible hydraulic hoses
- Hydraulic concrete unloading gate
- Hydraulic cylinders
- Hydraulic distributor with 4 levers
| Product | Size (mm) | Units/Mould | Output/Hour |
| Brick | 60 x 200 x 100 | 60 | 4800 |
| Brick | 60 x 120 x 250 | 28 | 2240 |
| Hollow Block | 100 x 200 x 400 | 9 | 720 |
| Hollow Block | 200 x 200 x400 | 5 | 400 |
